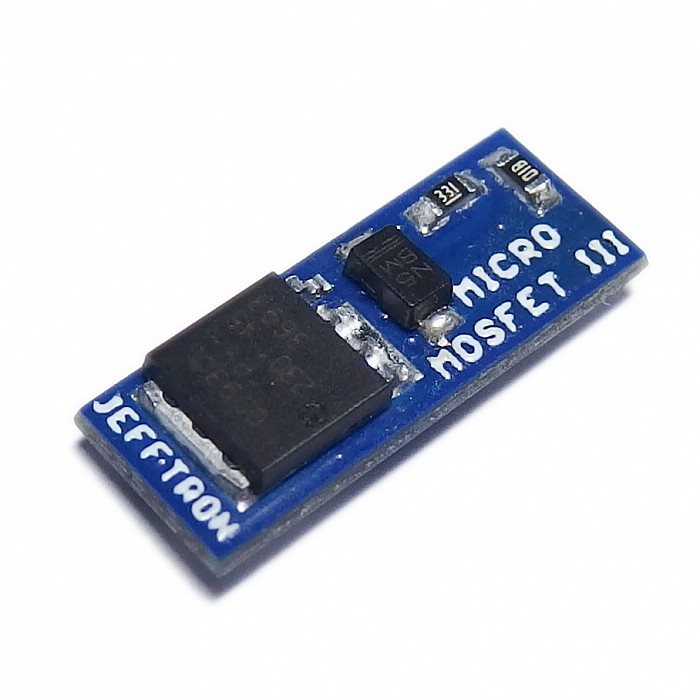

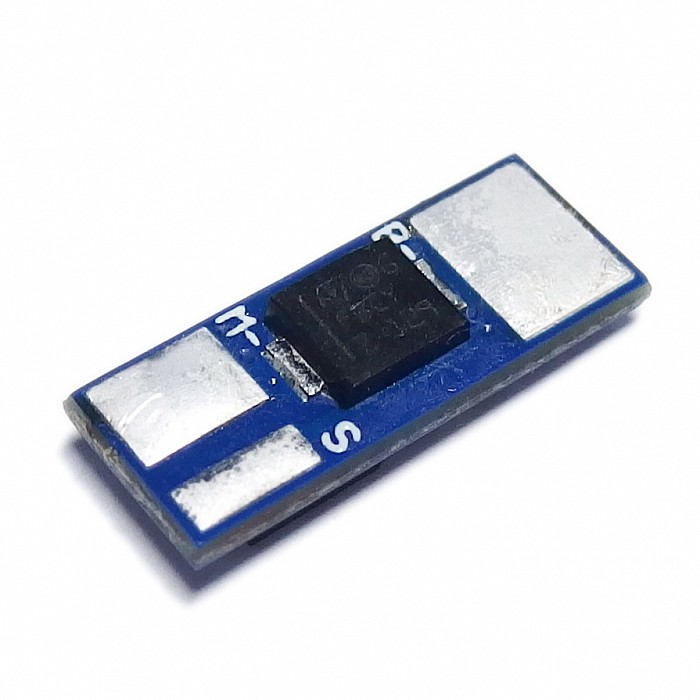

Jefftron Micro Mosfet III

Professionally made mosfet designed for airsoft electric guns (AEG).
Device increases gun rate of fire and battery holds longer, than with basic wiring.

IMPROVEMENTS OVER MICRO MOSFET II:
- Designed for higher current loads
- Can be soldered directly to the minus contact of the T-Plug connector

SPECIFICATIONS:
- Very small device dimension, it fits nearly everywhere
- Devices without wires, you can use max. 1,5qmm (AWG16) power wires and 0,5qmm (AWG20) signal wires
- suitable for service center, if you are not familiar with soldering to the circuit board, choose device with wiring and accessories.
- Designed for spring up to M170 (equivalent for current 90A single shot fire or 35A burst fire for max. 30s). For higher load please use Mosfet II
- Specified for common batteries up to 17V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V)

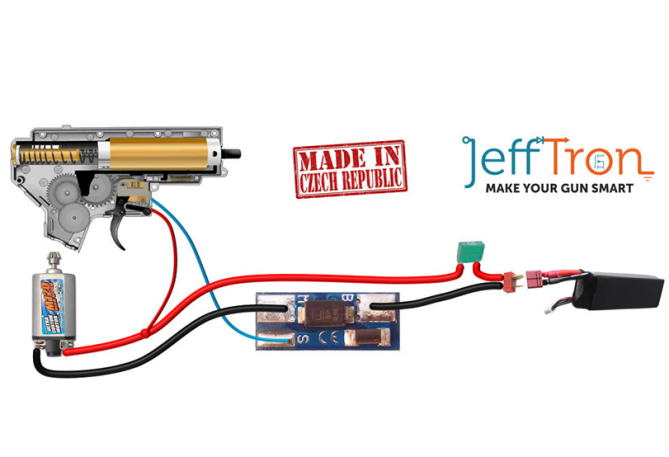

- 5 wires connection
- positive wire isn't connect into device
- device size 16x6,4x3,5mm
- No current consumption in the idle mode
- No sparking on switch contacts
- In auto fire mode piston stops in random position due the mechabox design
- For right function is necessary to have a functional gearbox cut off lever, selector plate, reverse latch, trigger and trigger block, as it has the standard gearbox

DEVICE INSTRUCTIONS: you can download installation manual in English here [PDF, 673.34 kB]
PACKING: device, heat shrink tube and installation manual in English

WARNING: Installation of this device leave to expert, who could solder and disassemble airsoft gun. Never user soldering gun!
