Professionally made mosfet designed for airsoft electric guns (AEG).
Device increases gun rate of fire and battery holds longer, than with basic wiring.

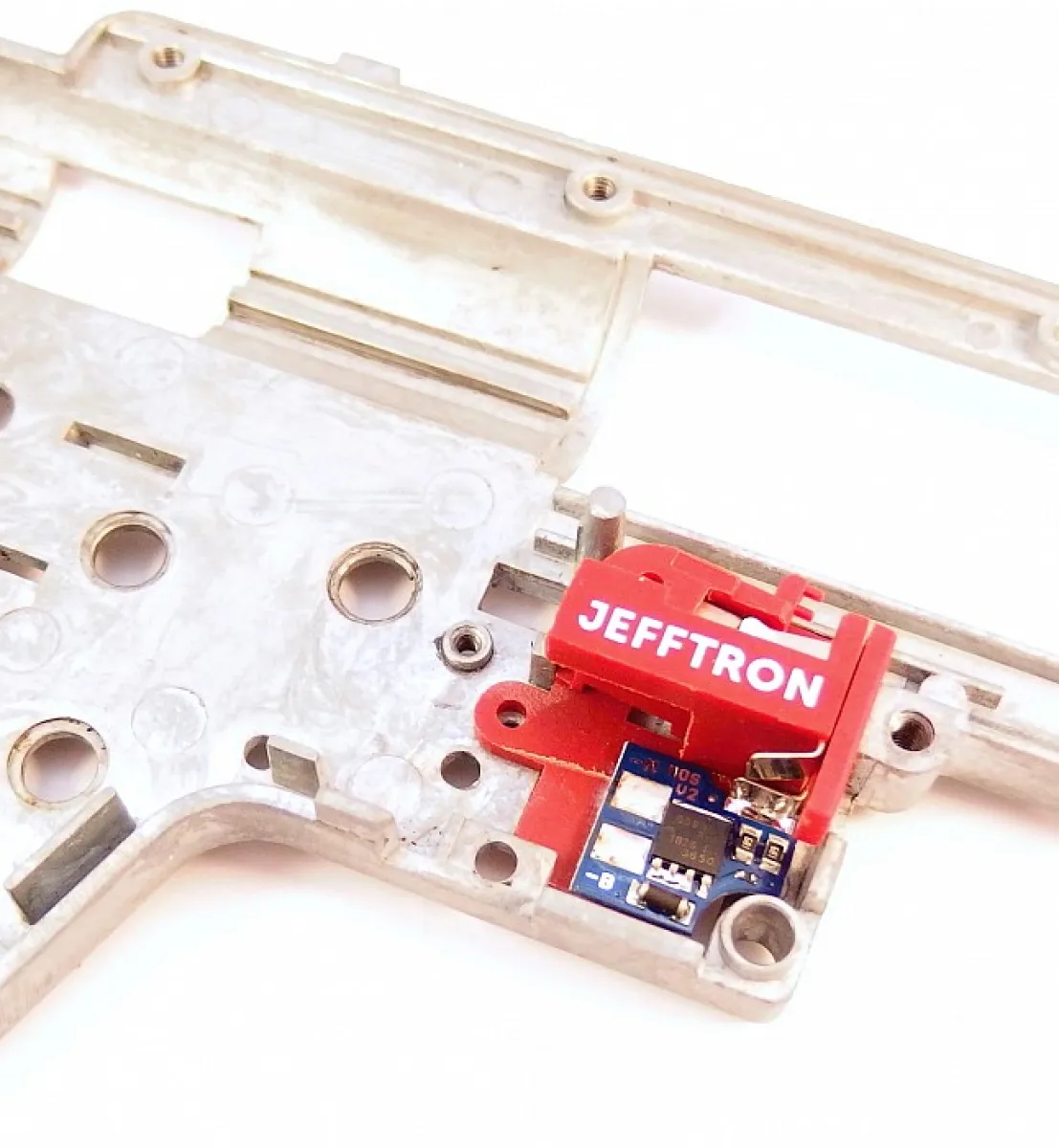

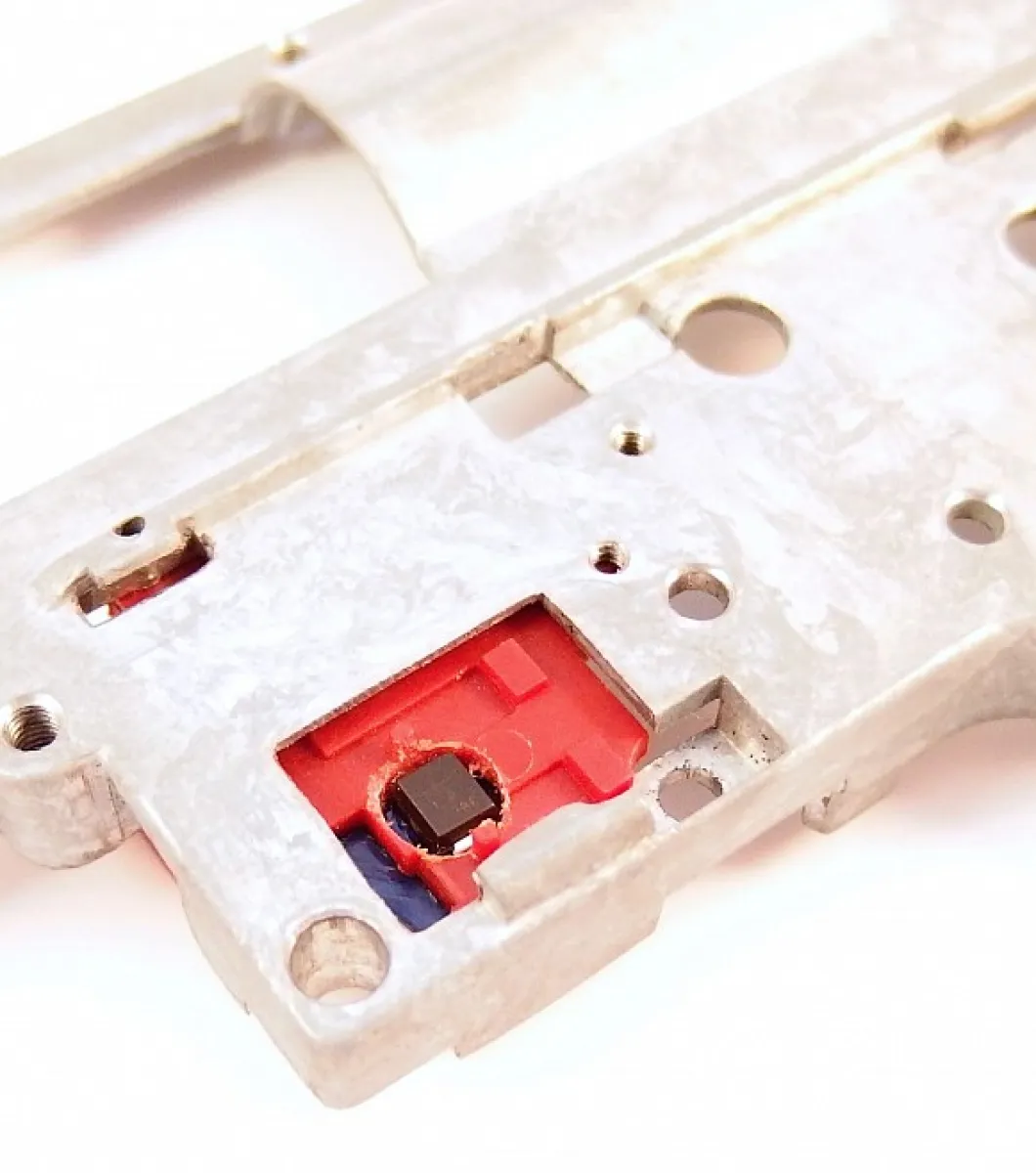

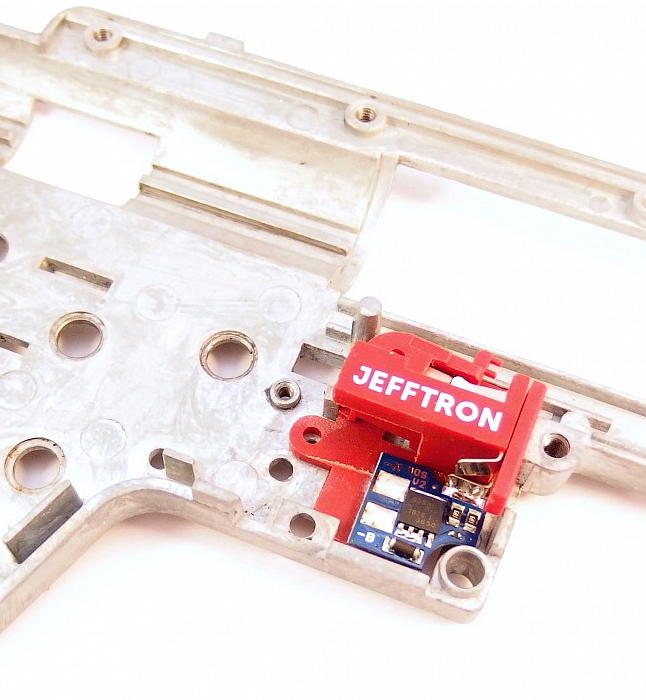

It is fully integrated inside the gearbox version 2 instead of the original trigger contacts, compatible with Tokyo Marui standard.
SPECIFICATIONS:

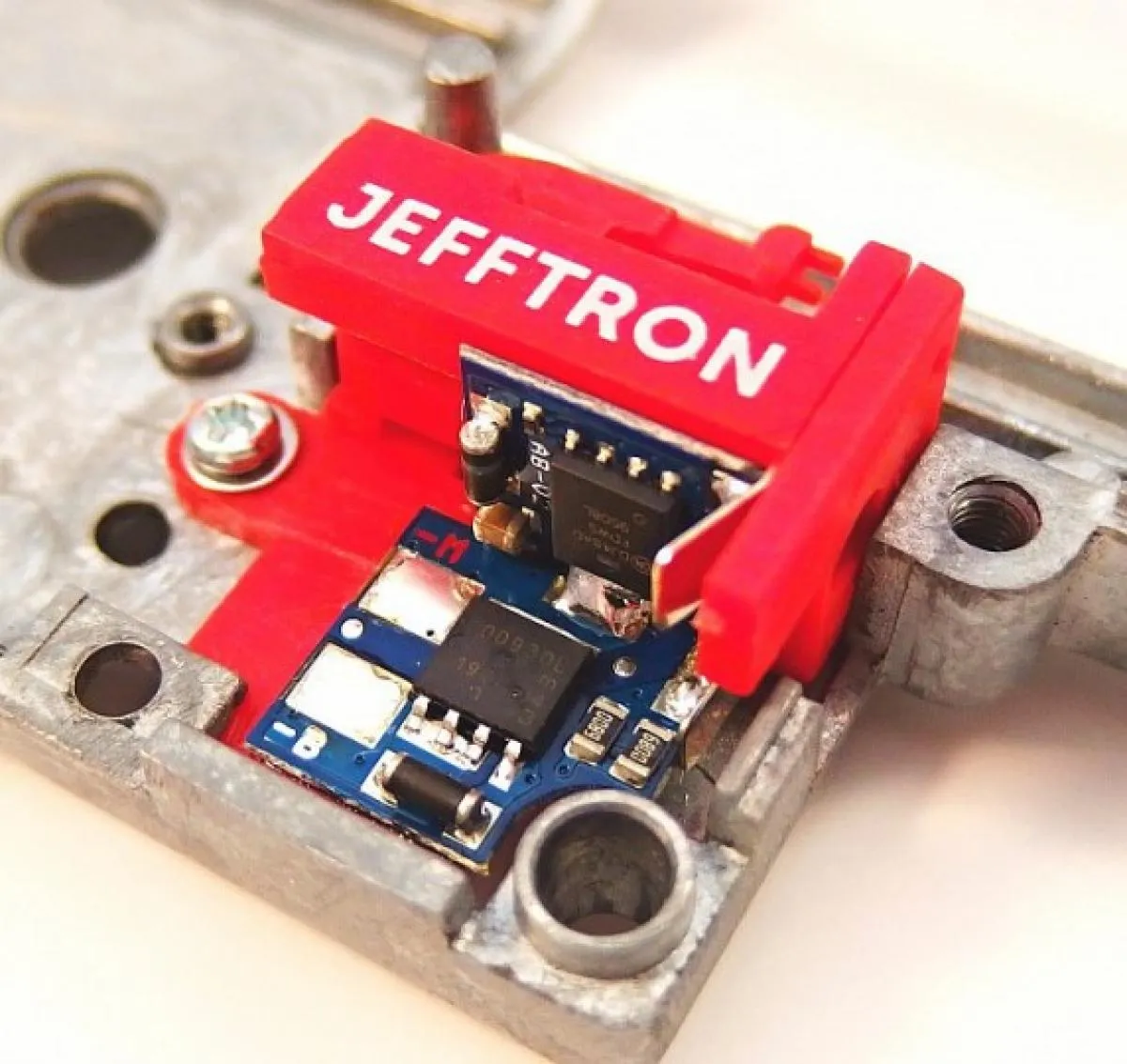

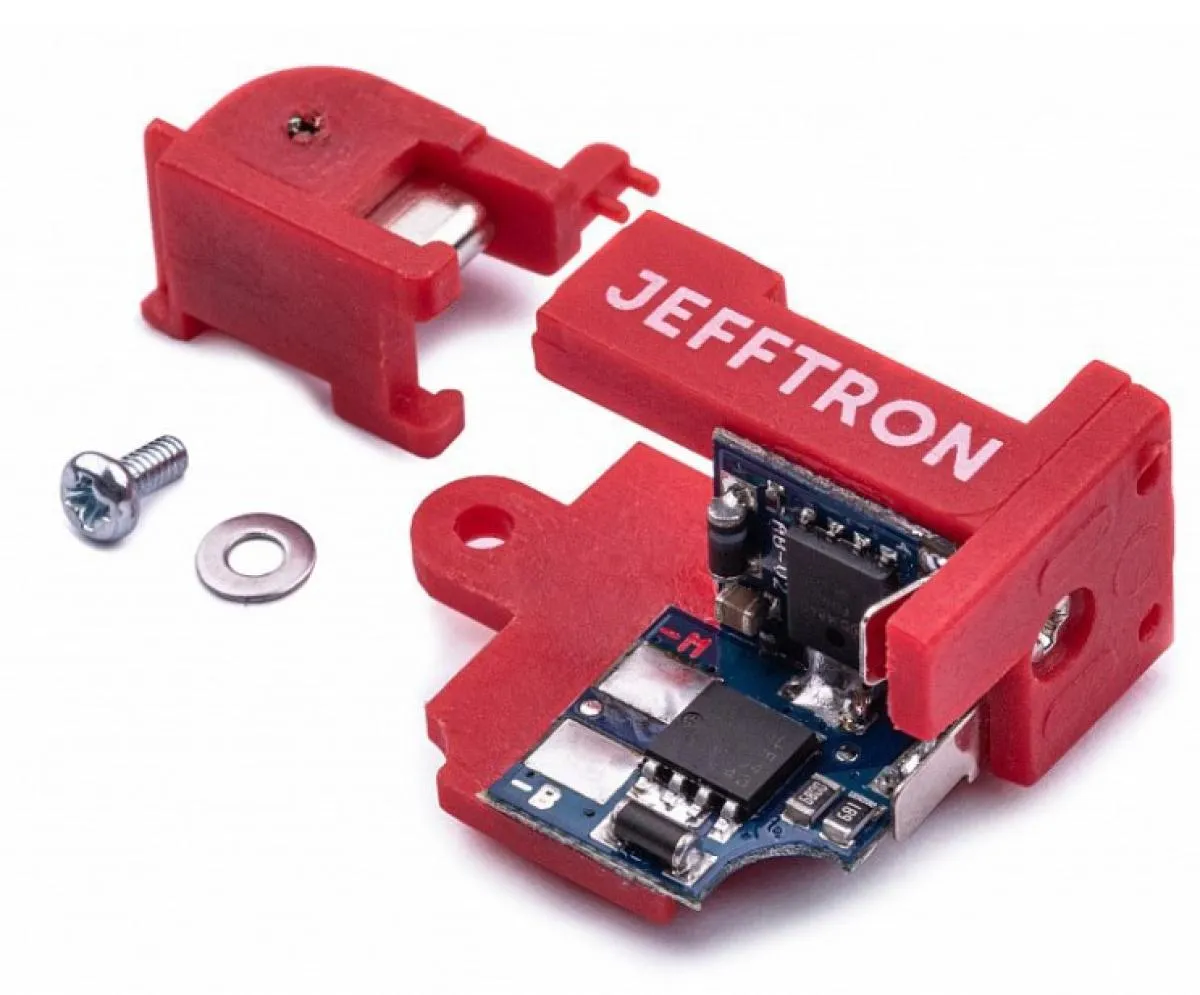

- Mosfet with active brake build on trigger contacts from SHS company
- Easy installation inside the gearbox version 2

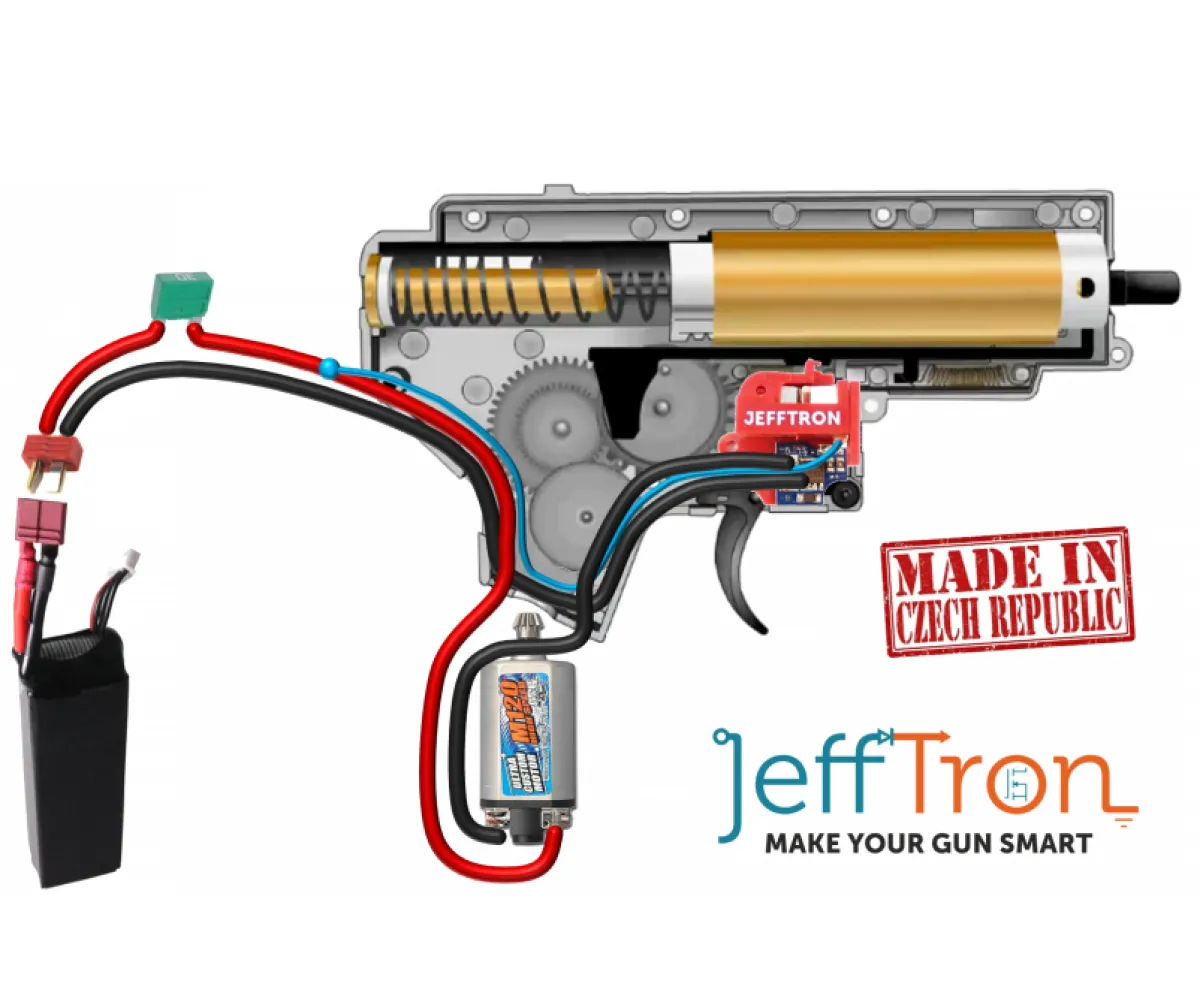

- Completely made wiring allows the fastest and the easiest installation into the gun, it is long enough for all kind of weapons with battery placed in the stock
-There are high quality power wires 1,5 qmm (AWG16) with thin and hard MPPE insulation and signal blue wire 0.34 qmm (AWG24) with MPPE insulation
- The wire length between the gearbox and the battery connector is 290mm
- Board with electronics is coated with lacquer, it protects device against water
- If you want to use your own wires, choose device without wiring
- If you need another type of wiring, choose device with universal wiring
- Designed for spring up to M160 (equivalent for current 75A single shot fire or 25A burst fire for max. 30s). For higher load please use Active brake II (it is outside gearbox)
- Specified for common batteries up to 17V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V)
- No current consumption in the idle mode
- No sparking on switch contacts
- Active braking uses the excess energy from the motor to stop it. The braking effect is the most powerful with high torgue motor
- In auto fire mode piston stops in random position due the mechabox design
- For right function is necessary to have a functional gearbox cut off lever, selector plate, reverse latch, trigger and trigger block, as it has the standard gearbox
